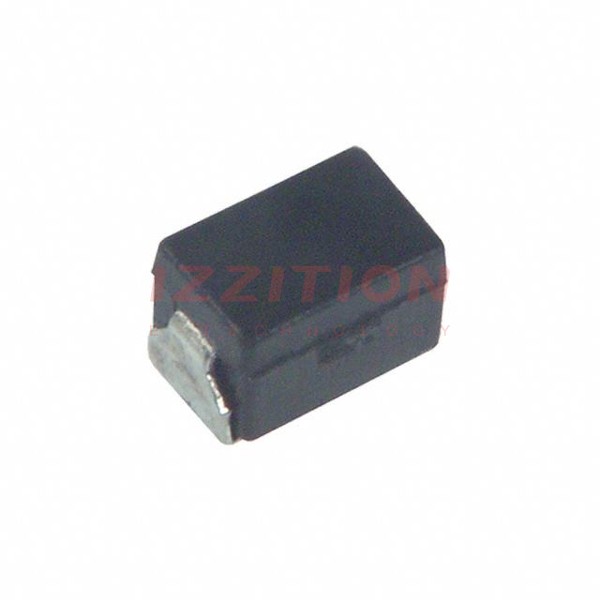

| Part Number | ELJ-PC1R0MF3 | ELJ-PC100MF3 | ELJ-PC1R0MF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite | - |
| Inductance | 1 µH | 10 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 890 mA | 400 mA | 475 mA |
| Current - Saturation (Isat) | 400mA | 140mA | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120mOhm | 580mOhm | 450mOhm Max |
| Q @ Freq | - | - | 10 @ 7.96MHz |
| Frequency - Self Resonant | 180MHz | 43MHz | 95MHz |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
