Please send RFQ , we will respond immediately.

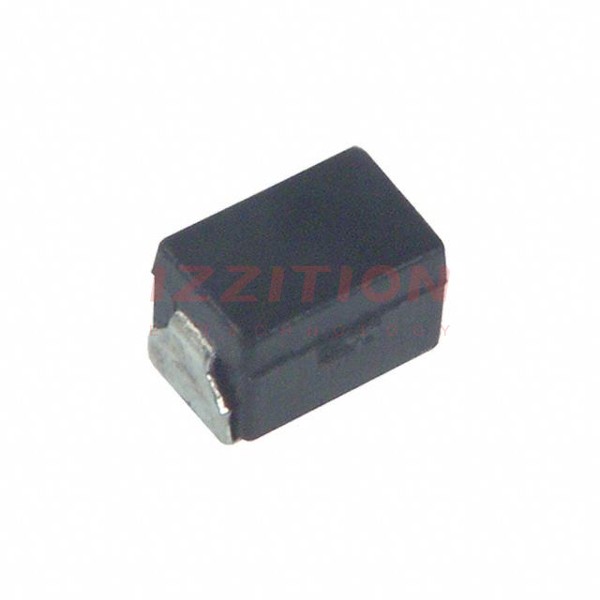

| Part Number | ELJ-PC1R0MF | ELJ-PC1R5MF | ELJ-PC1R0MF3 | ELJ-PA1R0MF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | - | - | Ferrite | Ferrite |
| Inductance | 1 µH | 1.5 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 475 mA | 435 mA | 890 mA | 600 mA |
| Current - Saturation (Isat) | - | - | 400mA | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 450mOhm Max | 550mOhm Max | 120mOhm | 150mOhm Max |
| Q @ Freq | 10 @ 7.96MHz | 10 @ 7.96MHz | - | 7 @ 7.96MHz |
| Frequency - Self Resonant | 95MHz | 85MHz | 180MHz | 150MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 7.96 MHz | 7.96 MHz | 1 MHz | 7.96 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | - |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.094" (2.40mm) |
