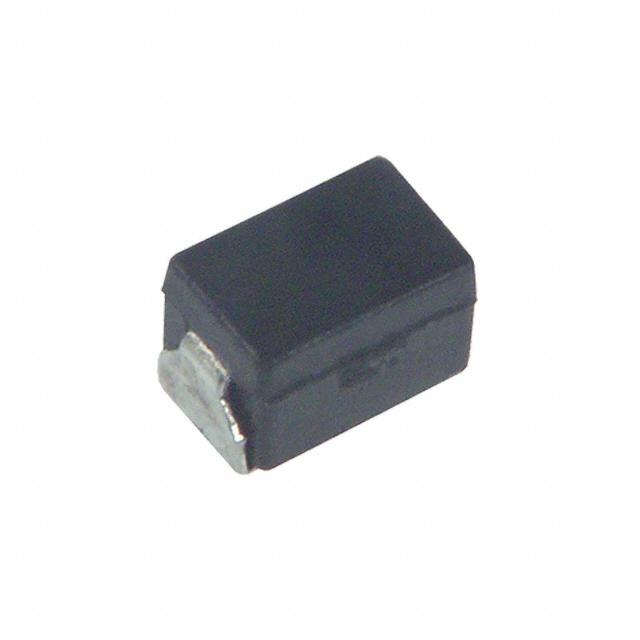

| Part Number | ELJ-PC120KF | ELJ-PC150KF | ELJ-PC220KF | ELJ-PA120KF | ELJ-PB120KF | ELJ-PC100KF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | Ferrite | - | - |
| Inductance | 12 µH | 15 µH | 22 µH | 12 µH | 12 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 195 mA | 175 mA | 160 mA | 230 mA | 340 mA | 210 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.7Ohm Max | 3.2Ohm Max | 4Ohm Max | 600mOhm Max | 700mOhm Max | 2.2Ohm Max |
| Q @ Freq | 20 @ 2.52MHz | 20 @ 2.52MHz | 20 @ 2.52MHz | 15 @ 2.52MHz | 10 @ 2.52MHz | 20 @ 2.52MHz |
| Frequency - Self Resonant | 25MHz | 21MHz | 18MHz | 21MHz | 17MHz | 32MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | 1210 (3225 Metric) | 1812 (4532 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) | - | 1812 | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.094" (2.40mm) | 0.134" (3.40mm) | 0.071" (1.80mm) |
