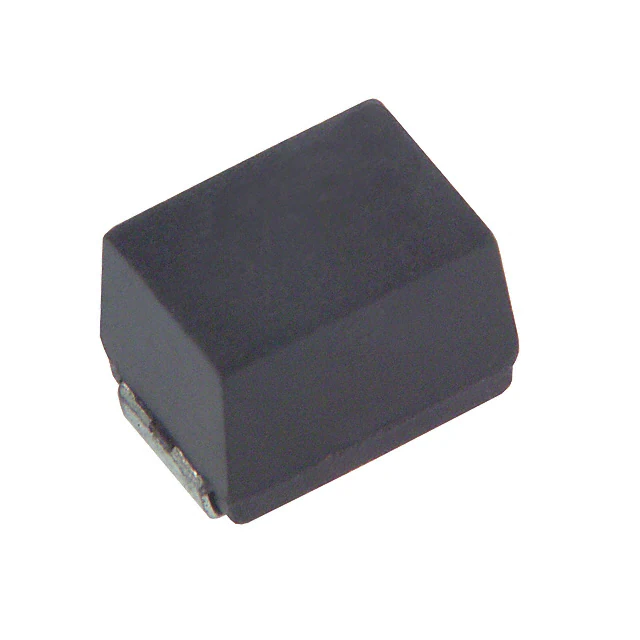

| Part Number | ELJ-PB330KF | ELJ-PC330KF | ELJ-PB390KF | ELJ-PA330KF |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound |
| Material - Core | - | - | - | Ferrite |
| Inductance | 33 µH | 33 µH | 39 µH | 33 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 250 mA | 120 mA | 230 mA | 155 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.4Ohm Max | 6.5Ohm Max | 1.6Ohm Max | 1.65Ohm Max |
| Q @ Freq | 10 @ 2.52MHz | 20 @ 2.52MHz | 10 @ 2.52MHz | 15 @ 2.52MHz |
| Frequency - Self Resonant | 10MHz | 16MHz | 9.5MHz | 12MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1008 (2520 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1812 | 1008 (2520 Metric) | 1812 | - |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.071" (1.80mm) | 0.134" (3.40mm) | 0.094" (2.40mm) |
