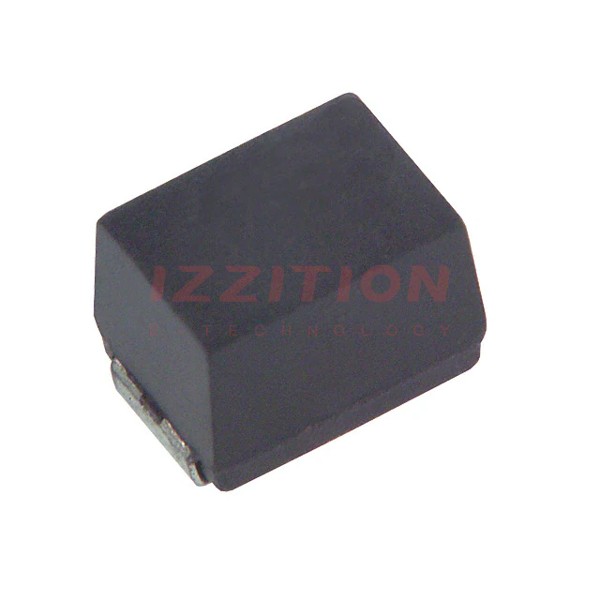

| Part Number | ELJ-PB101KF | ELJ-PB121KF | ELJ-PB151KF | ELJ-PB181KF | ELJ-PA101KF | ELJ-PB100KF |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Wirewound |
| Material - Core | - | - | - | - | Ferrite | - |
| Inductance | 100 µH | 120 µH | 150 µH | 180 µH | 100 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 150 mA | 130 mA | 120 mA | 110 mA | 90 mA | 360 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4Ohm Max | 4.5Ohm Max | 6.5Ohm Max | 7.5Ohm Max | 5Ohm Max | 650mOhm Max |
| Q @ Freq | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 10 @ 2.52MHz |
| Frequency - Self Resonant | 6MHz | 5.5MHz | 5MHz | 4.5MHz | 6.5MHz | 19MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) | 1812 (4532 Metric) |
| Supplier Device Package | 1812 | 1812 | 1812 | 1812 | - | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.094" (2.40mm) | 0.134" (3.40mm) |
