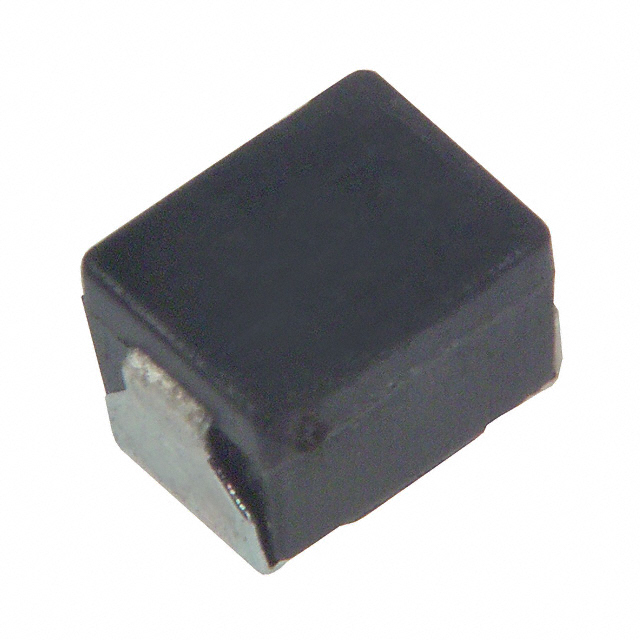

| Part Number | ELJ-NAR56KF | ELJ-NCR56KF | ELJ-NDR56KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 560 nH | 560 nH | 560 nH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 170 mA | 120 mA | 140 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max | 1.7Ohm Max | 2.69Ohm Max |
| Q @ Freq | 10 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz |
| Frequency - Self Resonant | 160MHz | 145MHz | 100MHz |
| Ratings | - | - | - |
| Operating Temperature | - | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 25.2 MHz | 25.2 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1008 (2520 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | 1008 (2520 Metric) | 0805 (2012 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.071" (1.80mm) | 0.057" (1.45mm) |
