Please send RFQ , we will respond immediately.

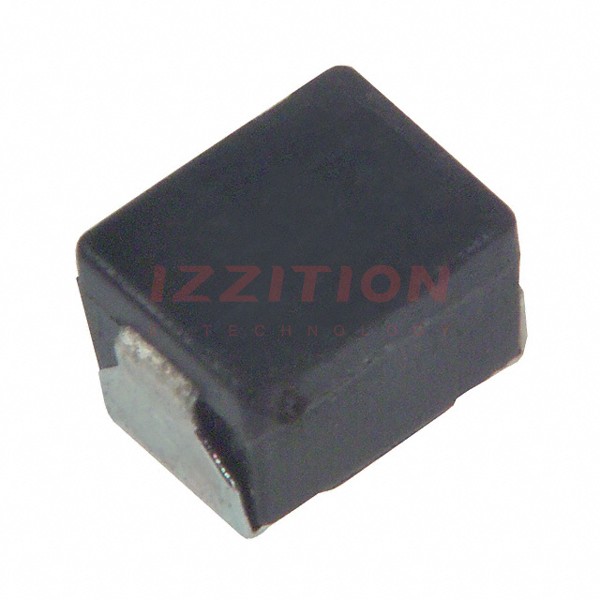

| Part Number | ELJ-NAR27KF | ELJ-NAR47KF | ELJ-NCR27KF | ELJ-NDR27KF | ELJ-NAR22KF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 270 nH | 470 nH | 270 nH | 270 nH | 220 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 175 mA | 140 mA | 165 mA | 210 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1Ohm Max | 1.4Ohm Max | 1.25Ohm Max | 1.95Ohm Max | 900mOhm Max |
| Q @ Freq | 10 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz | 10 @ 25.2MHz |
| Frequency - Self Resonant | 250MHz | 180MHz | 230MHz | 300MHz | 280MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | -20°C ~ 85°C | -20°C ~ 85°C | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 25.2 MHz | 25.2 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1008 (2520 Metric) | 0805 (2012 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | 1008 (2520 Metric) | 0805 (2012 Metric) | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.071" (1.80mm) | 0.057" (1.45mm) | 0.094" (2.40mm) |
