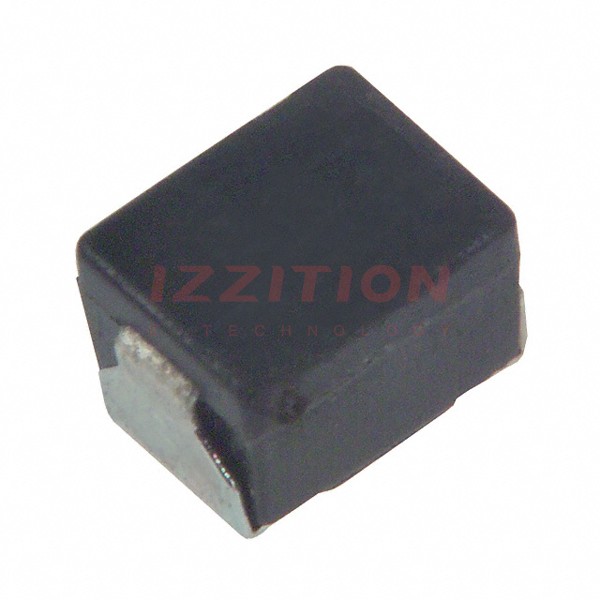

| Part Number | ELJ-NA3R9JF | ELJ-NA3R3JF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic |
| Inductance | 3.9 µH | 3.3 µH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 95 mA | 100 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.4Ohm Max | 4.2Ohm Max |
| Q @ Freq | 13 @ 7.96MHz | 13 @ 7.96MHz |
| Frequency - Self Resonant | 57MHz | 62MHz |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) |
