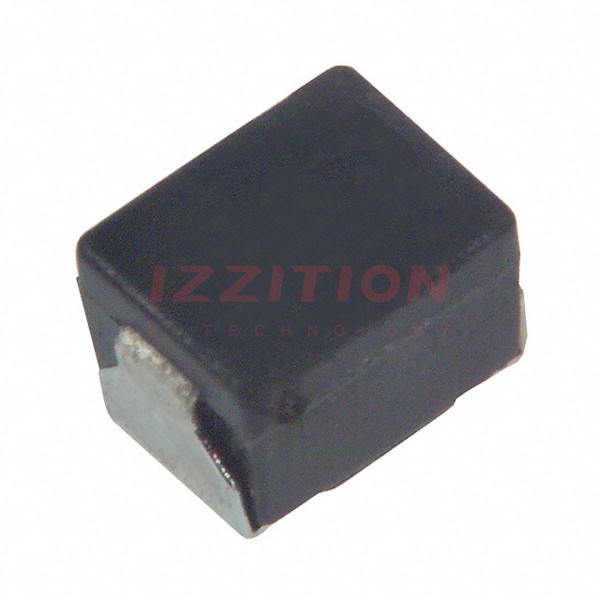

| Part Number | ELJ-NA1R0JF | ELJ-NA1R8JF | ELJ-NA1R2JF | ELJ-NA1R5JF | ELJ-ND1R0JF |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic | Non-Magnetic |
| Inductance | 1 µH | 1.8 µH | 1.2 µH | 1.5 µH | 1 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 125 mA | 110 mA | 120 mA | 115 mA | 120 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.1Ohm Max | 3Ohm Max | 2.3Ohm Max | 2.7Ohm Max | 3.88Ohm Max |
| Q @ Freq | 13 @ 7.96MHz | 13 @ 7.96MHz | 13 @ 7.96MHz | 13 @ 7.96MHz | 8 @ 7.96MHz |
| Frequency - Self Resonant | 120MHz | 85MHz | 110MHz | 95MHz | 80MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | - | - | - | - | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz | 7.96 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | - | - | - | - | 0805 (2012 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.057" (1.45mm) |
