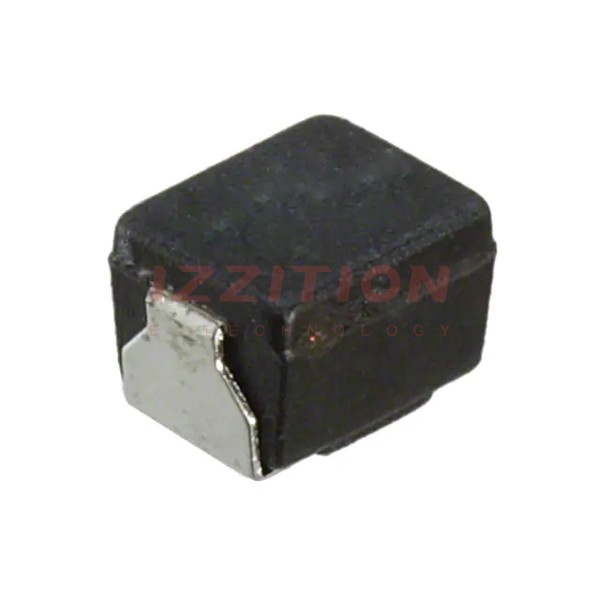

| Part Number | ELJ-LA100KF | ELJ-LC100KF | ELJ-LA101KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 10 µH | 100 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 410 mA | 240 mA | 110 mA |
| Current - Saturation (Isat) | 600mA | 470mA | 200mA |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 710mOhm | 1.6Ohm | 9.5Ohm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1008 (2520 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | 1008 (2520 Metric) | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.071" (1.80mm) | 0.094" (2.40mm) |
