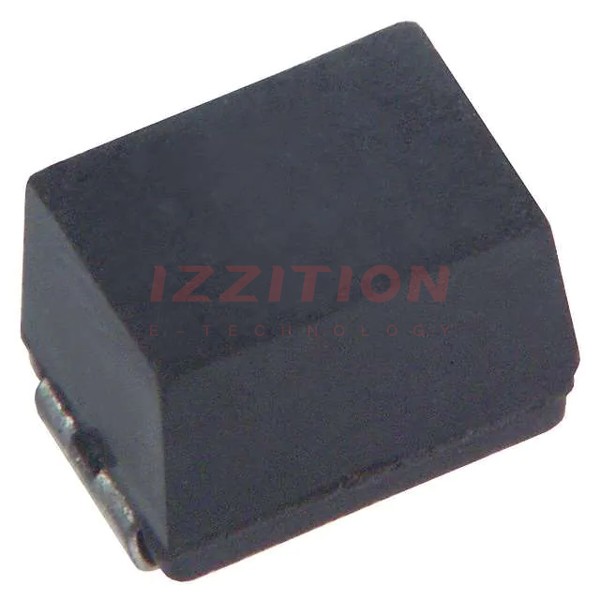

| Part Number | ELJ-FBR68MF | ELJ-FCR68MF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 530 mA | 140 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 480mOhm Max | 1.25Ohm Max |
| Q @ Freq | 30 @ 25.2MHz | 25 @ 25.2MHz |
| Frequency - Self Resonant | 105MHz | 135MHz |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 25.2 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1812 (4532 Metric) | 1008 (2520 Metric) |
| Supplier Device Package | 1812 | 1008 (2520 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.134" (3.40mm) | 0.071" (1.80mm) |
