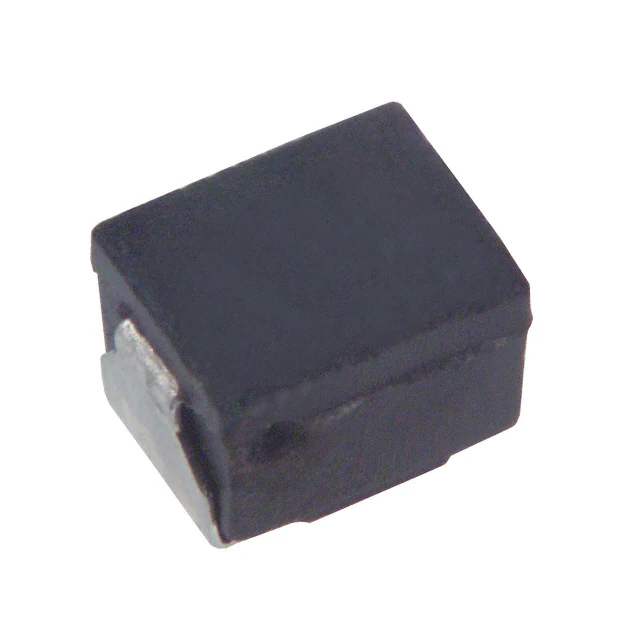

| Part Number | ELJ-FAR47KF2 | ELJ-FAR47MF2 | ELJ-FAR27KF2 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 470 nH | 470 nH | 270 nH |
| Tolerance | ±10% | ±20% | ±10% |
| Current Rating (Amps) | 290 mA | 290 mA | 345 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 440mOhm Max | 440mOhm Max | 320mOhm Max |
| Q @ Freq | 25 @ 25.2MHz | 25 @ 25.2MHz | 25 @ 25.2MHz |
| Frequency - Self Resonant | 160MHz | 160MHz | 210MHz |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz | 25.2 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
