Please send RFQ , we will respond immediately.

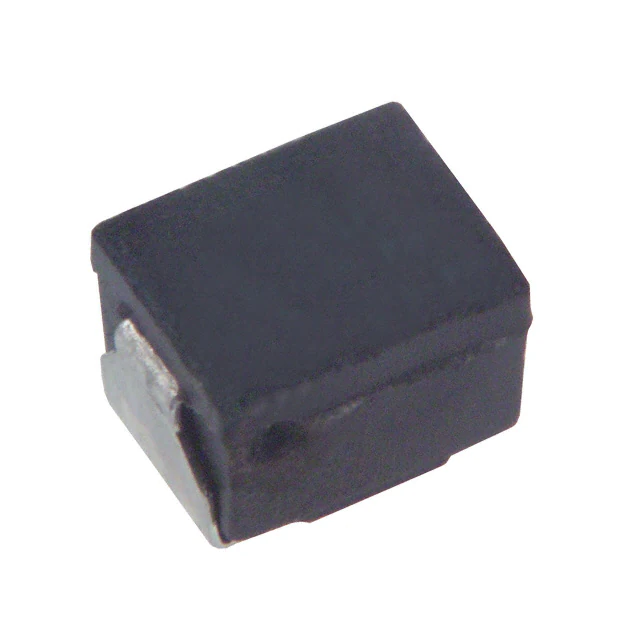

| Part Number | ELJ-FA151JF | ELJ-FA151KF | ELJ-FB151JF | ELJ-FA181JF | ELJ-FA101JF | ELJ-FA121JF | ELJ-FA150JF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - | - | - | - | - |
| Inductance | 150 µH | 150 µH | 150 µH | 180 µH | 100 µH | 120 µH | 15 µH |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 50 mA | 50 mA | 95 mA | 50 mA | 60 mA | 55 mA | 120 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 15Ohm Max | 15Ohm Max | 11Ohm Max | 17Ohm Max | 10Ohm Max | 11Ohm Max | 2.8Ohm Max |
| Q @ Freq | 20 @ 796kHz | 20 @ 796kHz | 40 @ 1.5MHz | 20 @ 796kHz | 20 @ 796kHz | 20 @ 796kHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 8MHz | 8MHz | 5.5MHz | 7MHz | 10MHz | 10MHz | 30MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 100 kHz | 796 kHz | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1812 (4532 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | 1812 | - | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.134" (3.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
