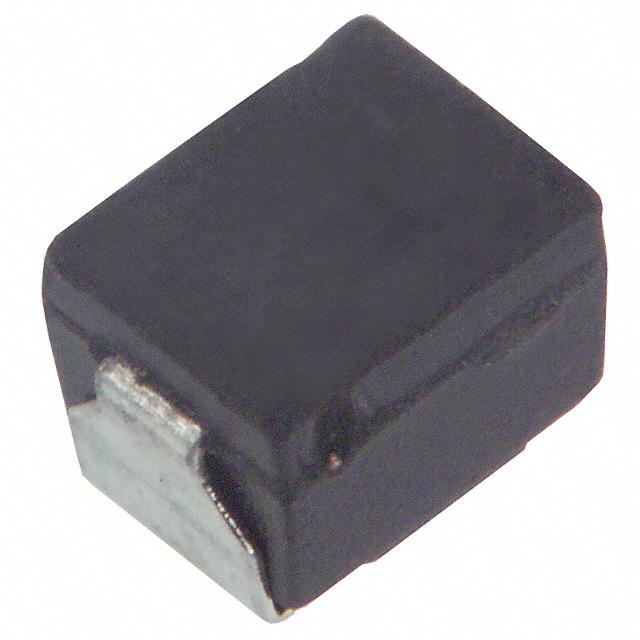

| Part Number | ELJ-EA330KF | ELJ-FA330KF | ELJ-EA331KF |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound |
| Material - Core | - | - | - |
| Inductance | 33 µH | 33 µH | 330 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 95 mA | 85 mA | 30 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 700mOhm Max | 5.6Ohm Max | 7.1Ohm Max |
| Q @ Freq | 10 @ 2.52MHz | 30 @ 2.52MHz | 20 @ 796kHz |
| Frequency - Self Resonant | 16MHz | 20MHz | 4MHz |
| Ratings | - | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 796 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
