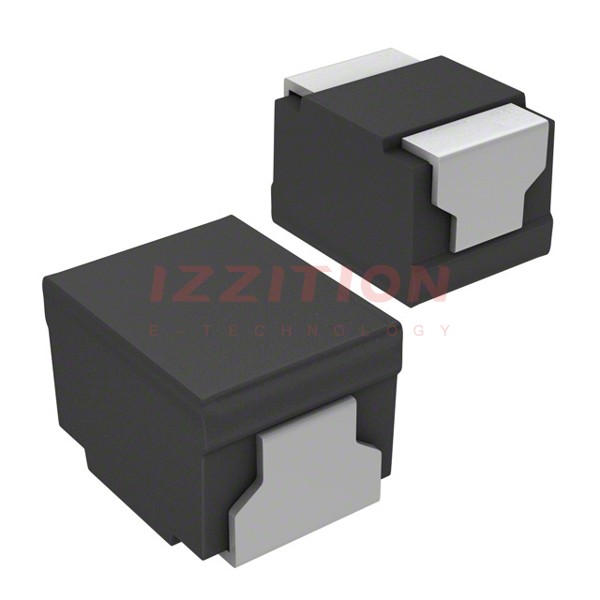

| Part Number | ELJ-DA680JF | ELJ-FA680JF |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 68 µH | 68 µH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 85 mA | 65 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 9Ohm Max | 9Ohm Max |
| Q @ Freq | 21 @ 2.52MHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 7.5MHz | 15MHz |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.094" (2.40mm) | 0.094" (2.40mm) |
