ELG-TEA2R2NA
  • Share:

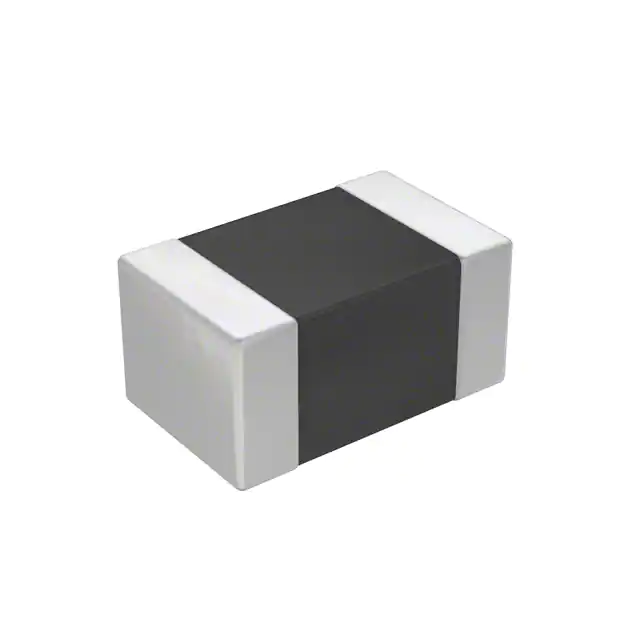

Panasonic Electronic Components ELG-TEA2R2NA

Manufacturer No:
ELG-TEA2R2NA
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
ELG-TEA2R2NA Datasheet
ECAD Model:
-
Description:
FIXED IND 2.2UH 800MA 200MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Multilayer
Material - Core:-
Inductance:2.2 µH
Tolerance:±30%
Current Rating (Amps):800 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):200mOhm Max
Q @ Freq:-
Frequency - Self Resonant:55MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805 (2012 Metric)
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.039" (1.00mm)
0 Remaining View Similar

In Stock

-
127

Please send RFQ , we will respond immediately.
