ELF-18D612
  • Share:

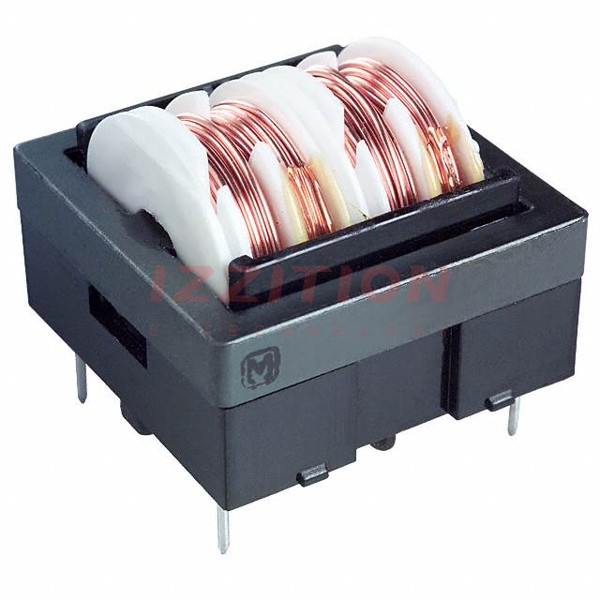

Panasonic Electronic Components ELF-18D612

Manufacturer No:
ELF-18D612
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ELF-18D612 Datasheet
ECAD Model:
-
Description:
CMC 22MH 1A 2LN TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 mH @ 1 kHz
Current Rating (Max):1A
DC Resistance (DCR) (Max):540mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-20°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max):0.925" (23.50mm)
Package / Case:Vertical, 4 PC Pin
0 Remaining View Similar

In Stock

-
551

Please send RFQ , we will respond immediately.
