ELF-18D424F
  • Share:

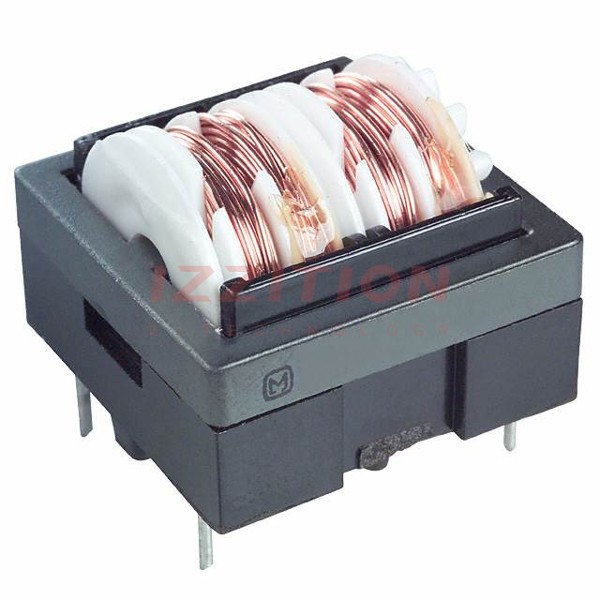

Panasonic Electronic Components ELF-18D424F

Manufacturer No:
ELF-18D424F
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ELF-18D424F Datasheet
ECAD Model:
-
Description:
CMC 5.6MH 1.4A 2LN TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:5.6 mH @ 1 kHz
Current Rating (Max):1.4A
DC Resistance (DCR) (Max):191mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-20°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.945" L x 0.984" W (24.00mm x 25.00mm)
Height (Max):0.807" (20.50mm)
Package / Case:Vertical, 4 PC Pin
0 Remaining View Similar

In Stock

-
53

Please send RFQ , we will respond immediately.
