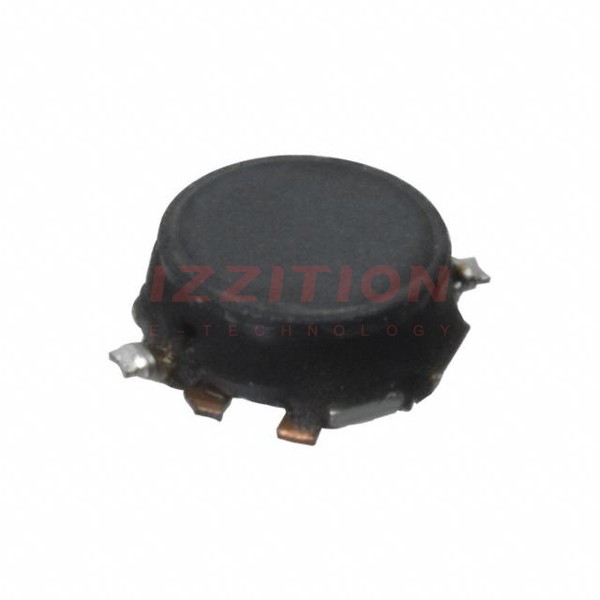

| Part Number | ELC-3GN6R8N | ELC-3FN6R8N |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±30% | ±30% |
| Current Rating (Amps) | 680 mA | 620 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 250mOhm | 360mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) | 0.047" (1.20mm) |
