ELC-10E820L
  • Share:

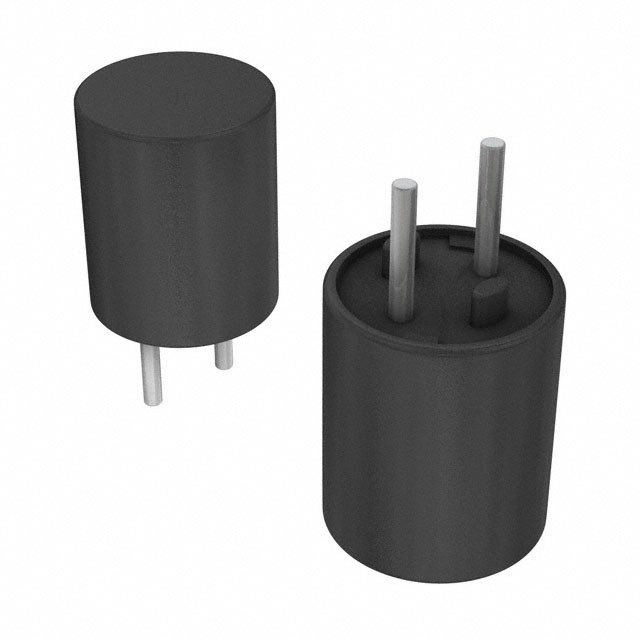

Panasonic Electronic Components ELC-10E820L

Manufacturer No:
ELC-10E820L
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ELC-10E820L Datasheet
ECAD Model:
-
Description:
FIXED IND 82UH 1A 190 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:82 µH
Tolerance:±10%
Current Rating (Amps):1 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):190mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.512" (13.00mm)
0 Remaining View Similar

In Stock

-
559

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELC-10E820L ELC-10E821L   ELC-10E822L   ELC-12E820L   ELC-10E120L   ELC-10E220L
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Material - Core - - - - - -
Inductance 82 µH 820 µH 8.2 mH 82 µH 12 µH 22 µH
Tolerance ±10% ±10% ±10% ±10% ±20% ±15%
Current Rating (Amps) 1 A 330 mA 100 mA 1.4 A 2.3 A 2 A
Current - Saturation (Isat) - - - - - -
Shielding Shielded Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 190mOhm 1.6Ohm 13.2Ohm 98mOhm 40mOhm 56mOhm
Q @ Freq - - - - - -
Frequency - Self Resonant - - - - - -
Ratings - - - - - -
Operating Temperature - - - - - -
Inductance Frequency - Test 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz
Features - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - - - - -
Size / Dimension 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.531" Dia (13.50mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm) 0.512" (13.00mm) 0.512" (13.00mm) 0.768" (19.50mm) 0.512" (13.00mm) 0.512" (13.00mm)
