Please send RFQ , we will respond immediately.

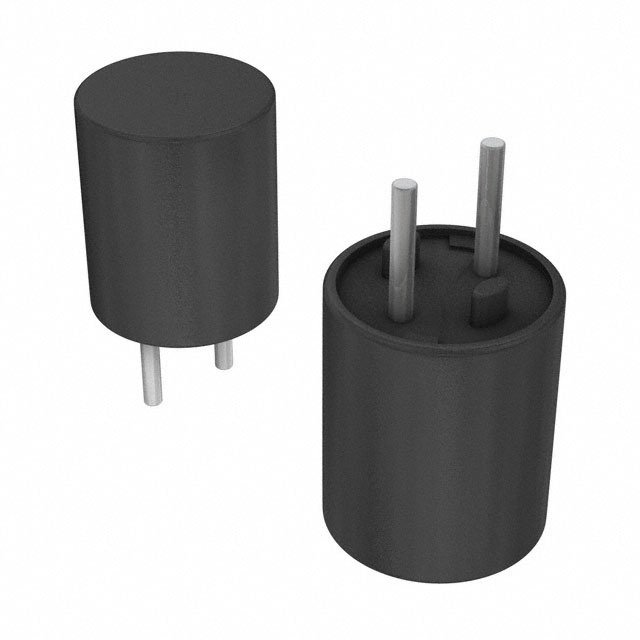

| Part Number | ELC-10E6R8L | ELC-12E6R8L |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±25% |
| Current Rating (Amps) | 2.6 A | 3.9 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 32mOhm | 18mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | - | - |
| Inductance Frequency - Test | 10 kHz | 10 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Vertical Cylinder | Radial, Vertical Cylinder |
| Supplier Device Package | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.768" (19.50mm) |
