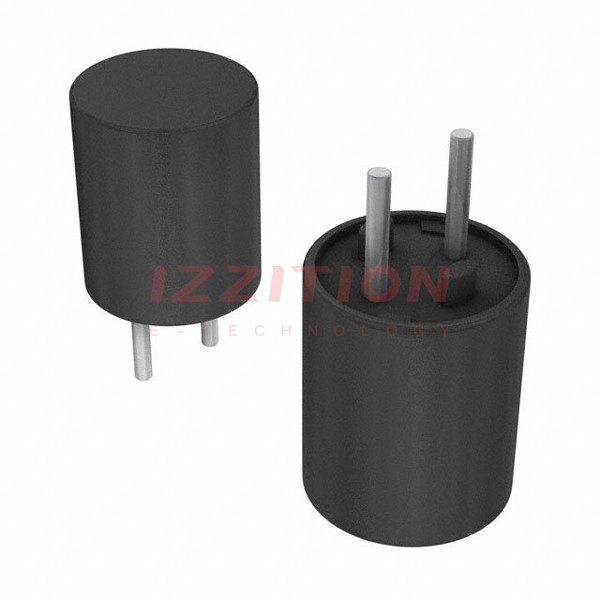

Panasonic Electronic Components ELC-10E220L

Manufacturer No:
ELC-10E220L
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
ELC-10E220L Datasheet
ECAD Model:
-
Description:
FIXED IND 22UH 2A 56 MOHM TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Wirewound
Material - Core:-
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):2 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):56mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.512" (13.00mm)
0 Remaining View Similar

In Stock

-
475

Please send RFQ , we will respond immediately.

Similar Products

Part Number ELC-10E220L ELC-10E270L   ELC-10E820L   ELC-10E221L   ELC-10E222L   ELC-12E220L   ELC-10E120L
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Type Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound Wirewound
Material - Core - - - - - - -
Inductance 22 µH 27 µH 82 µH 220 µH 2.2 mH 22 µH 12 µH
Tolerance ±15% ±15% ±10% ±10% ±10% ±10% ±20%
Current Rating (Amps) 2 A 1.9 A 1 A 640 mA 200 mA 2.8 A 2.3 A
Current - Saturation (Isat) - - - - - - -
Shielding Shielded Shielded Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 56mOhm 62mOhm 190mOhm 410mOhm 3.6Ohm 33mOhm 40mOhm
Q @ Freq - - - - - - -
Frequency - Self Resonant - - - - - - -
Ratings - - - - - - -
Operating Temperature - - - - - - -
Inductance Frequency - Test 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz 10 kHz
Features - - - - - - -
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder Radial, Vertical Cylinder
Supplier Device Package - - - - - - -
Size / Dimension 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.394" Dia (10.00mm) 0.531" Dia (13.50mm) 0.394" Dia (10.00mm)
Height - Seated (Max) 0.512" (13.00mm) 0.512" (13.00mm) 0.512" (13.00mm) 0.512" (13.00mm) 0.512" (13.00mm) 0.768" (19.50mm) 0.512" (13.00mm)
