Please send RFQ , we will respond immediately.

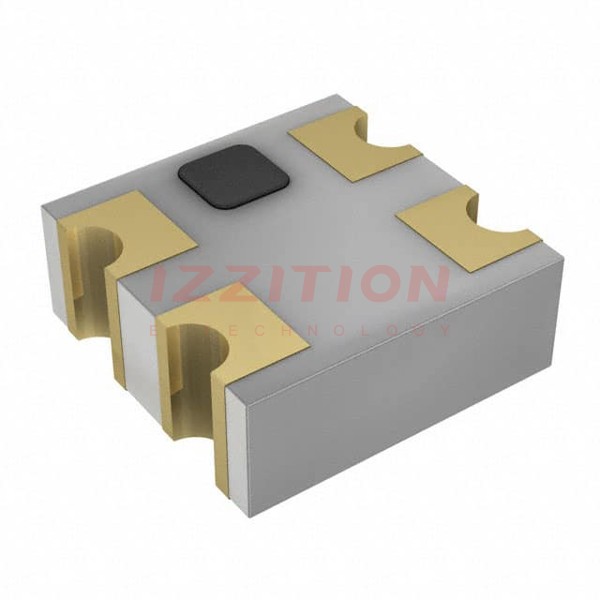

| Part Number | EHF-FD1540 | EHF-FD1550 | EHF-FD1549 | EHF-FD1546 | EHF-FD1542 | EHF-FD1548 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Coupler Type | Standard | Standard | Standard | - | Standard | Standard |
| Frequency | 800MHz ~ 1GHz | 1.85GHz | 800MHz ~ 1GHz | 800MHz | 1.85GHz ~ 1.95GHz | 1.9GHz |
| Coupling Factor | 17 ± 2dB | 20 ± 1dB | 20 ± 2dB | 17dB | 20dB | 17dB |
| Applications | Telecom/Datacom Systems | - | - | - | Cellular | Cellular |
| Insertion Loss | 0.25dB | 0.25dB | 0.2dB | - | 0.25dB | 0.3dB |
| Power - Max | - | 3W | - | - | 5W | 3W |
| Isolation | 25dB | 26dB | - | - | 26dB | 23dB |
| Return Loss | - | - | - | - | - | - |
| Package / Case | 0603 (1608 Metric) | 0606 (1616 Metric) | 0606 (1616 Metric) | 0606 (1616 Metric) | 0606 (1616 Metric) | 0606 (1616 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0606 | 0606 | 0606 | 0606 | 0606 |
