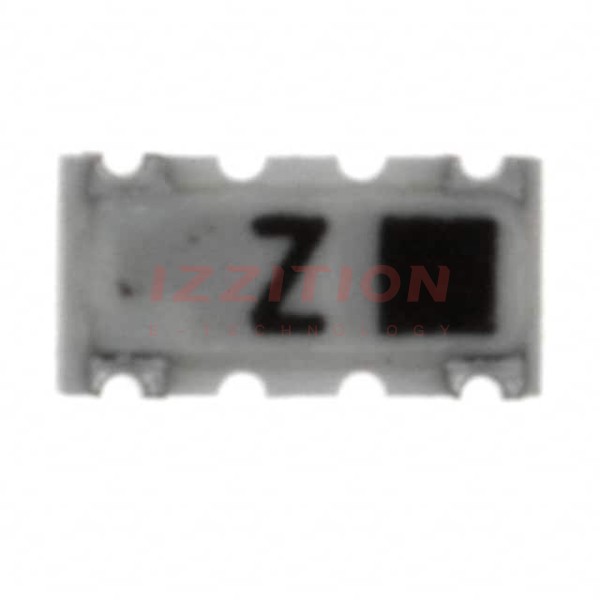

| Part Number | EHF-FD1508 | EHF-FD1509 | EHF-FD1502 | EHF-FD1503 | EHF-FD1506 | EHF-FD1507 |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Insertion Loss | 4dB | 4dB | 4dB | 4dB | 4dB | 4dB |
| Frequency | 981 MHz ~ 1008 MHz | 2043 Hz ~ 2104 MHz | 720 Hz ~ 760 MHz | 1.54 GHz ~ 1.64 GHz | 1607 Hz ~ 1685 MHz | 1720 Hz ~ 1790 MHz |
| Specifications | Isolation (Min) 18dB, 2.1 VSWR (Max) | Isolation (Min) 18dB, 1.6 VSWR (Max) | Isolation (Min) 18dB, 1.8 VSWR (Max) | - | Isolation (Min) 18dB, 1.6 VSWR (Max) | Isolation (Min) 18dB, 1.6 VSWR (Max) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Package / Case | - | - | - | - | - | - |
