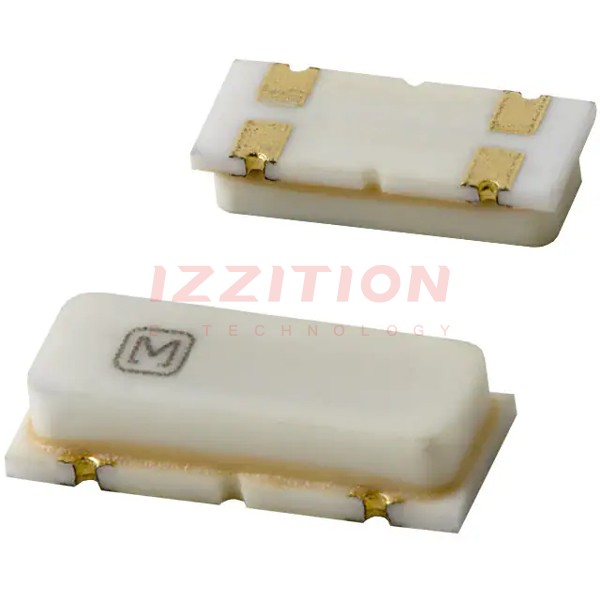

| Part Number | EFO-P4194E5 | EFO-S4194E5 | EFO-PS4194E5 | EFO-N4194E5 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 4.19 MHz | 4.19 MHz | 4.19 MHz | 4.19 MHz |
| Frequency Stability | ±0.3% | ±0.2% | ±0.6% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | - | Built in Capacitor | - | Without Capacitor |
| Capacitance | - | 33 pF | - | - |
| Impedance | - | - | - | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Non-Standard | 3-SMD, Non-Standard | 2-SMD, Non-Standard | 2-SMD, Non-Standard |
| Size / Dimension | 0.307" L x 0.126" W (7.80mm x 3.20mm) | 0.307" L x 0.126" W (7.80mm x 3.20mm) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.307" L x 0.126" W (7.80mm x 3.20mm) |
| Height | 0.071" (1.80mm) | 0.063" (1.60mm) | 0.047" (1.19mm) | 0.098" (2.50mm) |
