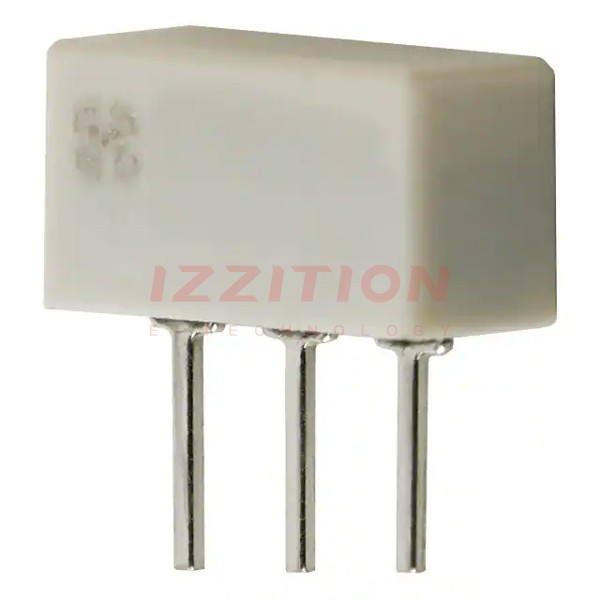

| Part Number | EFO-MC1205A4 | EFO-MN1205A4 | EFO-MC1005A4 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic |
| Frequency | 12 MHz | 12 MHz | 10 MHz |
| Frequency Stability | ±0.3% | ±0.3% | ±0.3% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | - | Built in Capacitor |
| Capacitance | - | - | - |
| Impedance | - | - | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Box - 3 Lead, 2.50mm Pitch | Radial, Box - 2 Lead, 5.00mm Pitch | Radial, Box - 3 Lead, 2.50mm Pitch |
| Size / Dimension | 0.335" L x 0.158" W (8.50mm x 4.00mm) | 0.335" L x 0.158" W (8.50mm x 4.00mm) | 0.335" L x 0.158" W (8.50mm x 4.00mm) |
| Height | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
