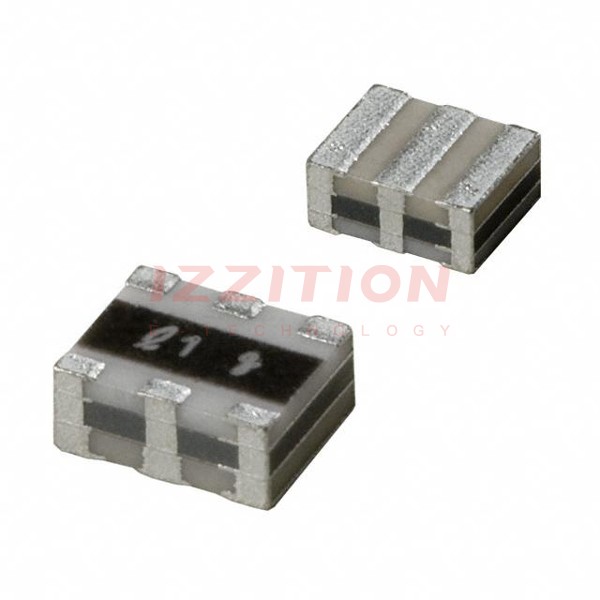

| Part Number | EFJ-C3005E5B | EFJ-C4005E5B | EFJ-C3205E5B | EFJ-C2005E5B |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Ceramic | Ceramic | Ceramic | Ceramic |
| Frequency | 30 MHz | 40 MHz | 32 MHz | 20 MHz |
| Frequency Stability | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Frequency Tolerance | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Features | Built in Capacitor | Built in Capacitor | Built in Capacitor | Built in Capacitor |
| Capacitance | 8 pF | 8 pF | 8 pF | 8 pF |
| Impedance | - | - | - | - |
| Operating Temperature | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C | -20°C ~ 80°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard | 3-SMD, Non-Standard |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
