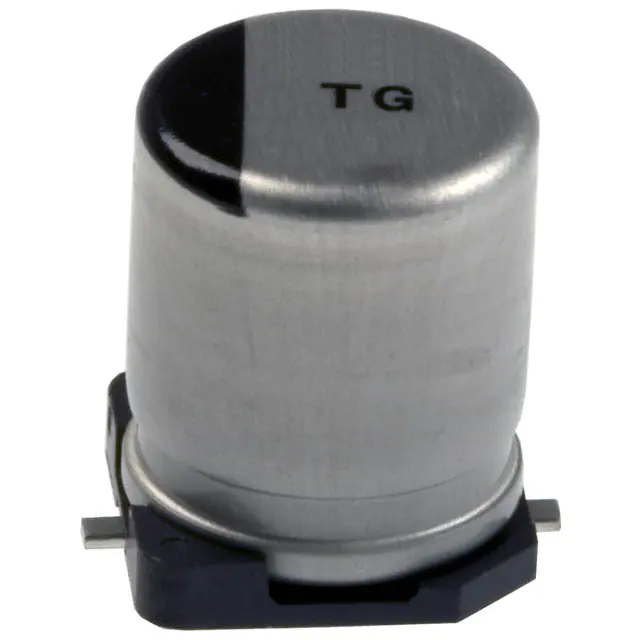

| Part Number | EEV-TG1J470UP | EEV-TG1K470UP | EEV-TG1V470UP | EEV-TG1H470UP | EEV-TG1J470P |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 47 µF | 47 µF | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 80 V | 35 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | 1Ohm @ 100kHz | 1Ohm @ 100kHz | 1Ohm @ 100kHz | 750mOhm @ 100kHz | 800mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C | 1000 Hrs @ 125°C | 2000 Hrs @ 125°C | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz | 58.5 mA @ 120 Hz | 65 mA @ 120 Hz | 86.45 mA @ 120 Hz | 97.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 100 kHz | 90 mA @ 100 kHz | 100 mA @ 100 kHz | 133 mA @ 100 kHz | 150 mA @ 100 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.244" (6.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
