EEV-TG1A102Q
  • Share:

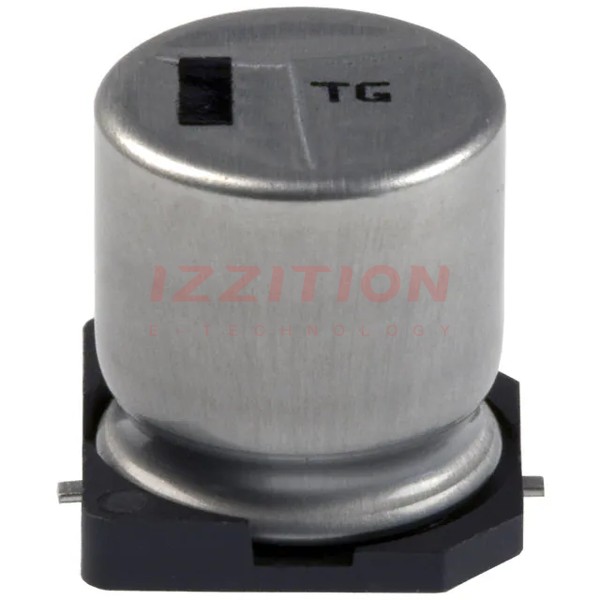

Panasonic Electronic Components EEV-TG1A102Q

Manufacturer No:
EEV-TG1A102Q
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Reel (TR)
Datasheet:
EEV-TG1A102Q Datasheet
ECAD Model:
-
Description:
CAP ALUM 1000UF 20% 10V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:1000 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):120mOhm @ 100kHz
Lifetime @ Temp.:2000 Hrs @ 125°C
Operating Temperature:-40°C ~ 125°C
Polarization:Polar
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:520 mA @ 120 Hz
Ripple Current @ High Frequency:800 mA @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.492" Dia (12.50mm)
Height - Seated (Max):0.531" (13.50mm)
Surface Mount Land Size:0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$2.08
249

Please send RFQ , we will respond immediately.
