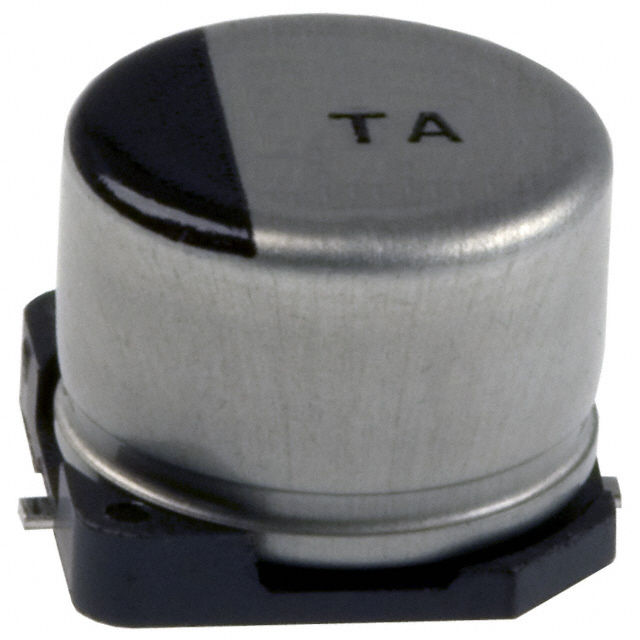

| Part Number | EEV-TA1V330P | EEV-TG1V330P | EEV-HA1V330P | EEV-TA1H330P |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 50 V |
| ESR (Equivalent Series Resistance) | - | 1Ohm @ 100kHz | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 1000 Hrs @ 125°C | 1000 Hrs @ 105°C | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 105°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 34.45 mA @ 120 Hz | 65 mA @ 120 Hz | 84 mA @ 120 Hz | 48.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 100 mA @ 100 kHz | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.244" (6.20mm) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
