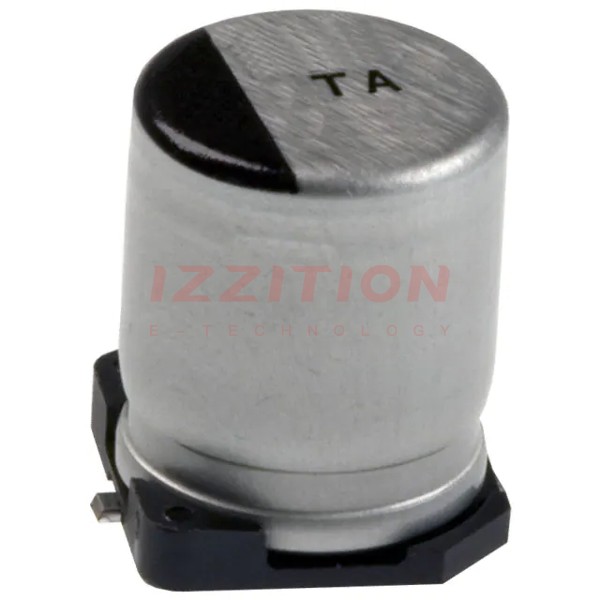

| Part Number | EEV-TA1A221P | EEV-TG1A221P | EEV-TA1C221P |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 µF | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | 1Ohm @ 100kHz | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C | 2000 Hrs @ 125°C | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | AEC-Q200 | - |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | - | 128.1 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 93 mA @ 100 kHz | 197 mA @ 100 kHz | 113 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.402" (10.20mm) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
