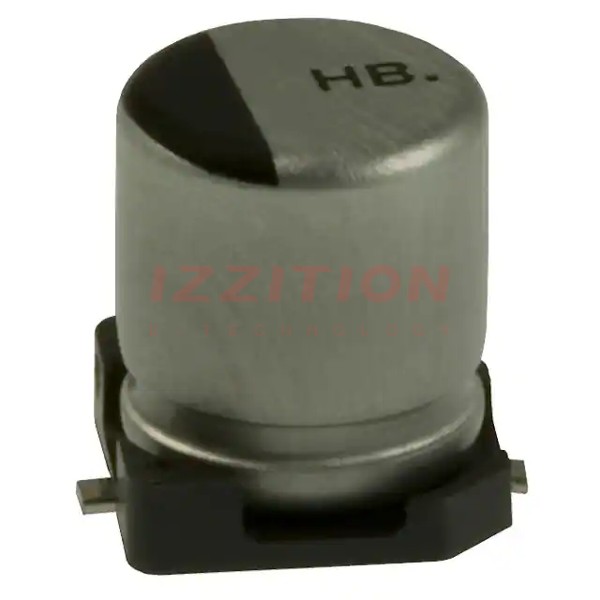

| Part Number | EEV-HB0J470R | EEV-HA0J470R | EEV-HB0G470R |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 1000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz | 46 mA @ 120 Hz | 34 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | - | - |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) | 0.213" (5.40mm) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
