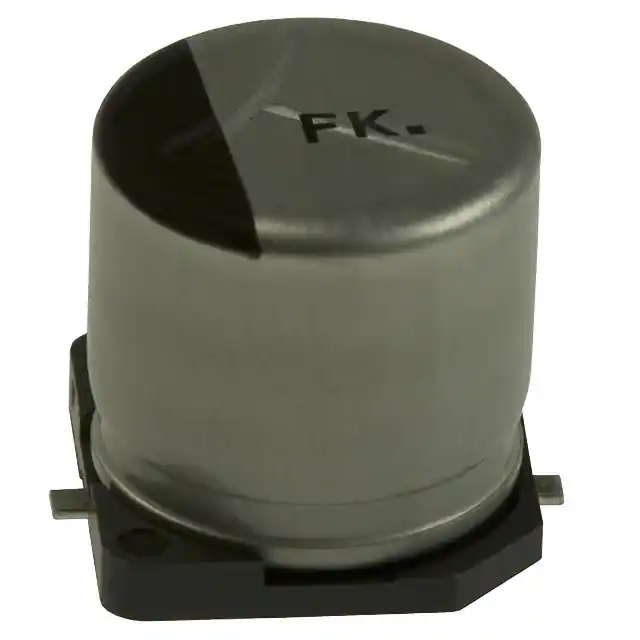

| Part Number | EEV-FK1V331P | EEV-FK1E331P | EEV-FK1V330P | EEV-FK1V331GP |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 330 µF | 33 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 25 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | - | - | - | 637.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz | 600 mA @ 100 kHz | 240 mA @ 100 kHz | 850 mA @ 100 kHz |
| Impedance | 80 mOhms | 160 mOhms | 360 mOhms | 80 mOhms |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.240" (6.10mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
