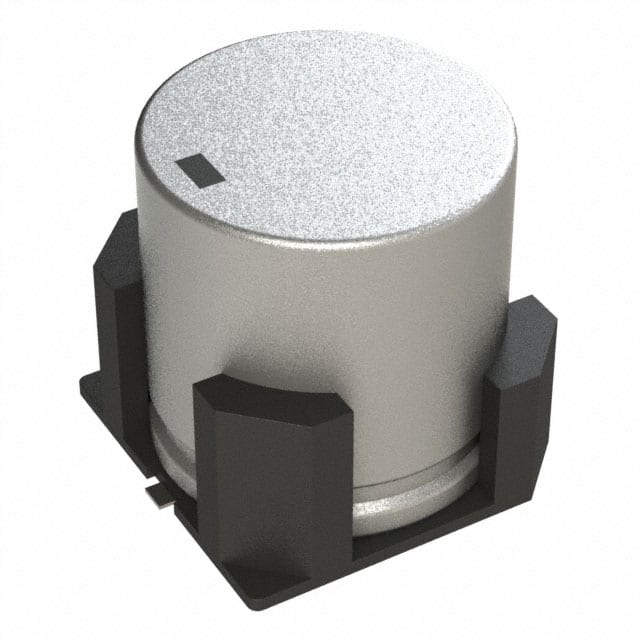

| Part Number | EEV-FK1K331V | EEV-FK1H331V | EEV-FK1K331M |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 80 V | 50 V | 80 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 594.8 mA @ 120 Hz | 562.5 mA @ 120 Hz | 594.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 793 mA @ 100 kHz | 750 mA @ 100 kHz | 793 mA @ 100 kHz |
| Impedance | 170 mOhms | 120 mOhms | 170 mOhms |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.543" (13.80mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
