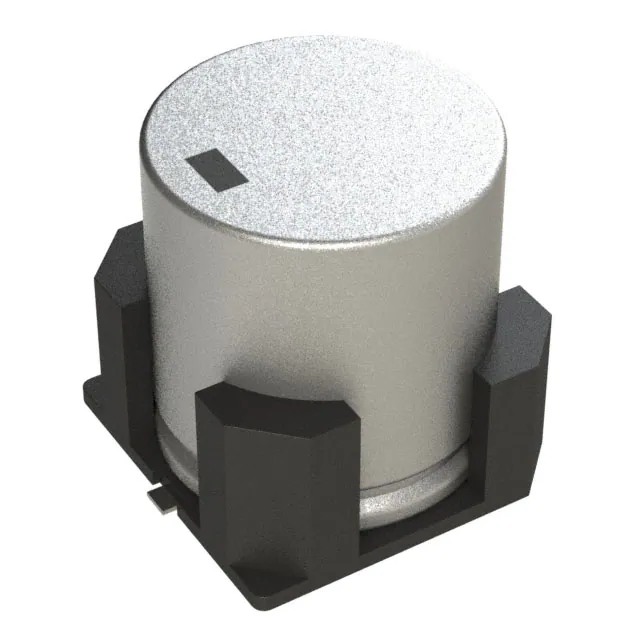

| Part Number | EEV-FK1J221V | EEV-FK1J221Q |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz | 800 mA @ 100 kHz |
| Impedance | 160 mOhms | 160 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.543" (13.80mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
