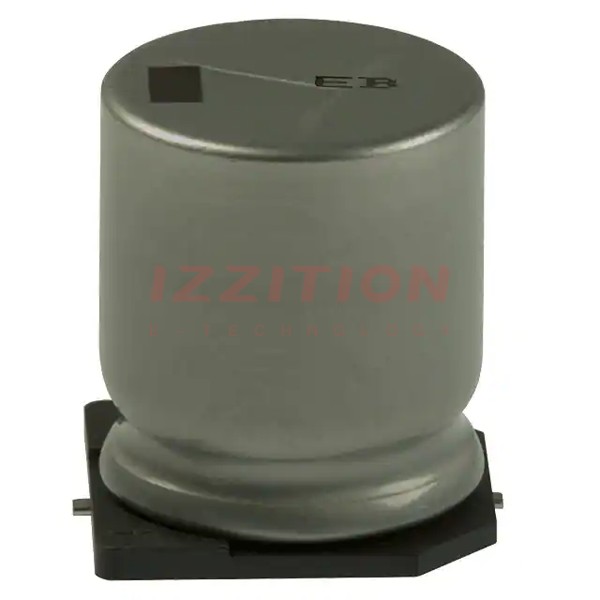

| Part Number | EEV-EB2G330M | EEV-EB2V330M |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Last Time Buy | Last Time Buy |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 400 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz | 240 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz | 480 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
