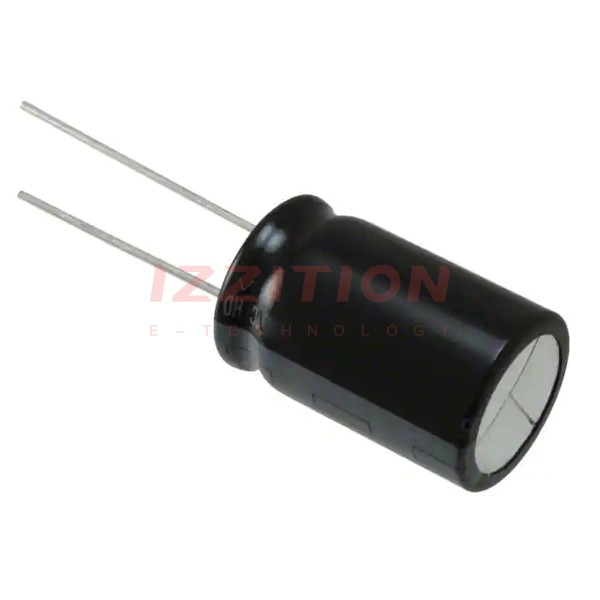

| Part Number | EEU-HD1H561SB | EEU-HD1H561S |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 975 mA @ 100 kHz | 975 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
