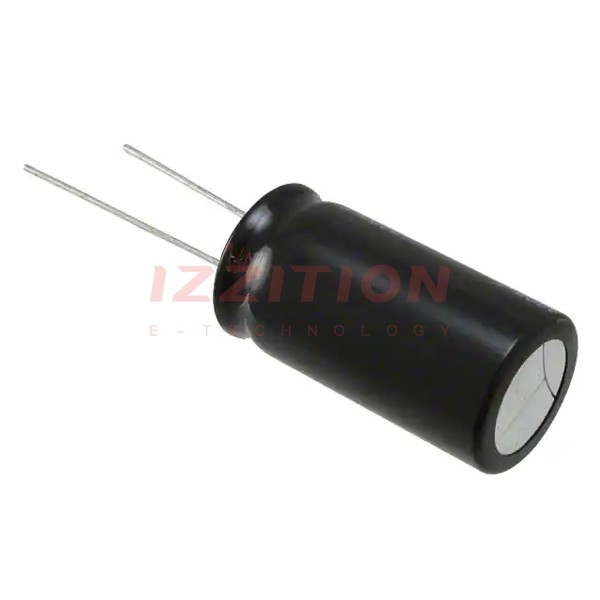

| Part Number | EEU-HD1A223 | EEU-HD1A222 |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active |
| Capacitance | 22000 µF | 2200 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz | 760 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 100 kHz | 874 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 0.689" (17.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
