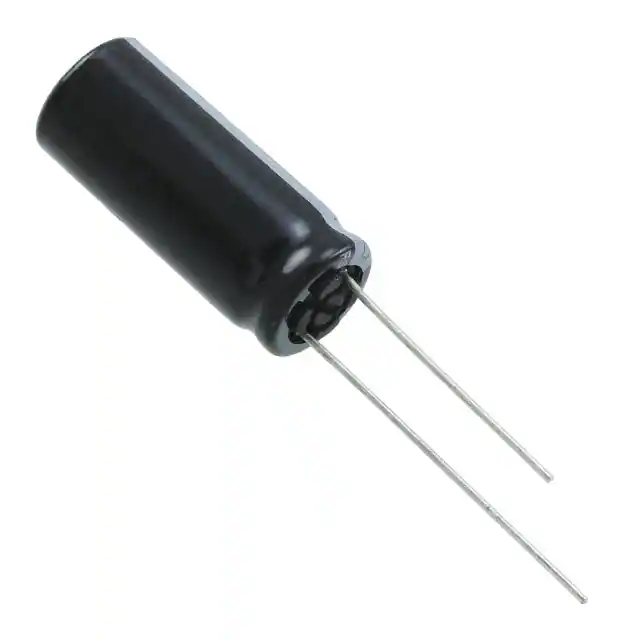

| Part Number | EEU-FS2A121LB | EEU-FS2A151LB | EEU-FS2A121B | EEU-FS2A121L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 120 µF | 150 µF | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz | 840 mA @ 120 Hz | 784 mA @ 120 Hz | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz | 1.2 A @ 100 kHz | 1.12 A @ 100 kHz | 1.2 A @ 100 kHz |
| Impedance | 44 mOhms | 44 mOhms | 54 mOhms | 44 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.063" (27.00mm) | 0.866" (22.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
