EEU-FS1E332L
  • Share:

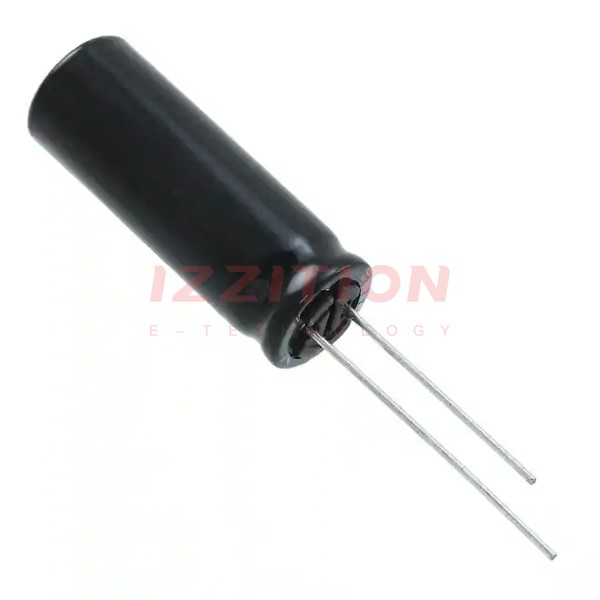

Panasonic Electronic Components EEU-FS1E332L

Manufacturer No:
EEU-FS1E332L
Manufacturer:
Panasonic Electronic Components
Package:
Bulk
Datasheet:
EEU-FS1E332L Datasheet
ECAD Model:
-
Description:
CAP ALUM 3300UF 20% 25V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:3300 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:10000 Hrs @ 105°C
Operating Temperature:-40°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:3 A @ 120 Hz
Ripple Current @ High Frequency:3.75 A @ 100 kHz
Impedance:12 mOhms
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.492" Dia (12.50mm)
Height - Seated (Max):1.457" (37.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$2.12
274

Please send RFQ , we will respond immediately.
