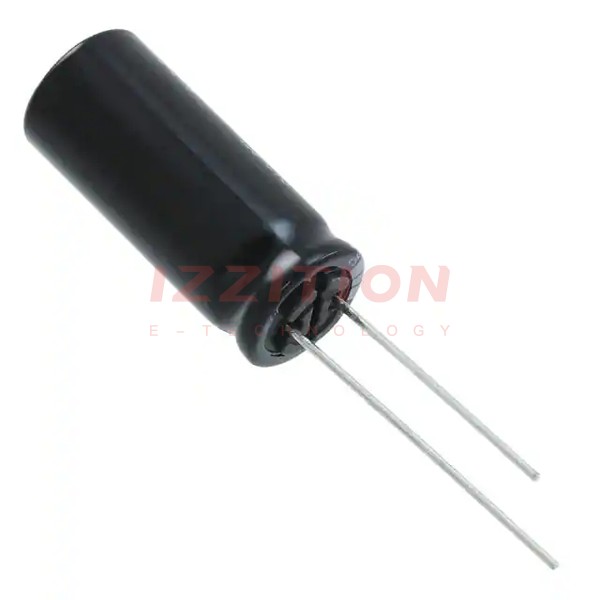

| Part Number | EEU-FS1A562L | EEU-FS1A562S | EEU-FS1A512L |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 5600 µF | 5600 µF | 5100 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 10 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.904 A @ 120 Hz | 2.64 A @ 120 Hz | 2.904 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 100 kHz | 3.3 A @ 100 kHz | 3.63 A @ 100 kHz |
| Impedance | 13 mOhms | 17 mOhms | 13 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) | 0.866" (22.00mm) | 1.260" (32.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
