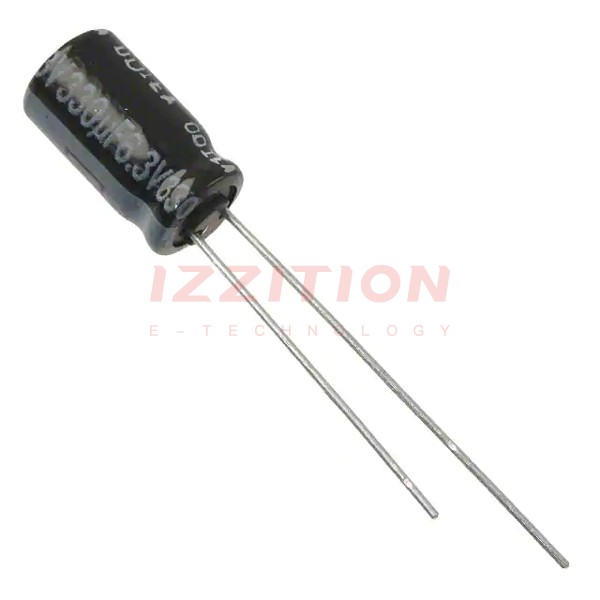

| Part Number | EEU-FR0J471 | EEU-FR0J472 | EEU-FR0J471B | EEU-FR0J471H |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 470 µF | 4700 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 10000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 341.25 mA @ 120 Hz | 2.552 A @ 120 Hz | 341.25 mA @ 120 Hz | 341.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 455 mA @ 100 kHz | 3.19 A @ 100 kHz | 455 mA @ 100 kHz | 455 mA @ 100 kHz |
| Impedance | 130 mOhms | 15 mOhms | 130 mOhms | 130 mOhms |
| Lead Spacing | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.492" Dia (12.50mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 1.063" (27.00mm) | 0.500" (12.70mm) | 0.500" (12.70mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
