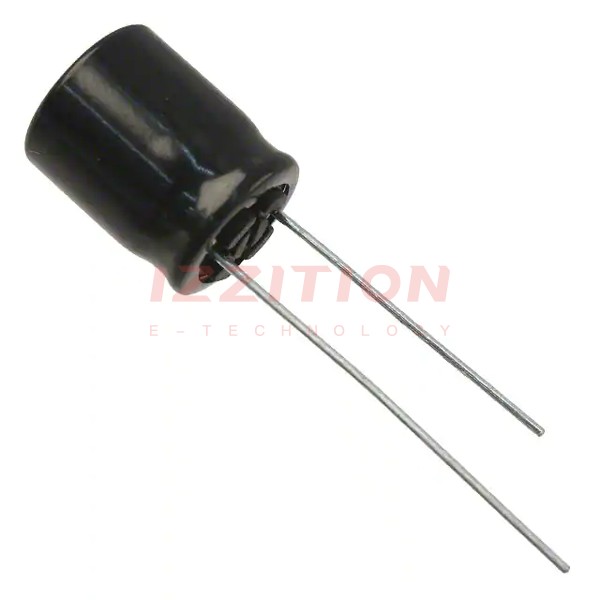

| Part Number | EEU-FR0J122LB | EEU-FR0J152LB | EEU-FR0J122B | EEU-FR0J122L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1200 µF | 1500 µF | 1200 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 9000 Hrs @ 105°C | 6000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 992 mA @ 120 Hz | 1.248 A @ 120 Hz | 1.032 A @ 120 Hz | 992 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.24 A @ 100 kHz | 1.56 A @ 100 kHz | 1.29 A @ 100 kHz | 1.24 A @ 100 kHz |
| Impedance | 41 mOhms | 30 mOhms | 43 mOhms | 41 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.866" (22.00mm) | 0.551" (14.00mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
