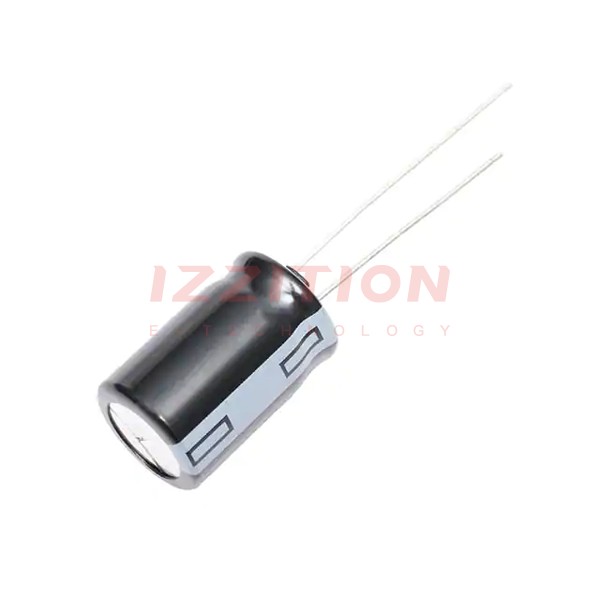

| Part Number | EEU-FP1E681 | EEU-FP1E681B | EEU-FM1E681 |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 680 µF | 680 µF | 680 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 68mOhm @ 100kHz | 68mOhm @ 100kHz | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Applications | Automotive | Automotive | General Purpose |
| Ripple Current @ Low Frequency | 1.625 A @ 120 Hz | 1.625 A @ 120 Hz | 1.635 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz | 2.5 A @ 100 kHz | 2.18 A @ 100 kHz |
| Impedance | - | - | 19 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
