Please send RFQ , we will respond immediately.

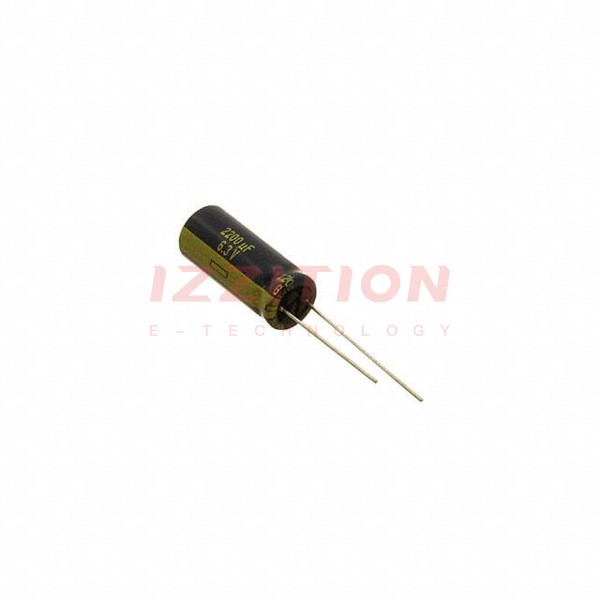

| Part Number | EEU-FK0J222L | EEU-FK0J822L | EEU-FK0J222LB | EEU-FK0J222 | EEU-FK0J222B |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 2200 µF | 8200 µF | 2200 µF | 2200 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | 5000 Hrs @ 105°C | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.344 A @ 120 Hz | 2.408 A @ 120 Hz | 1.344 A @ 120 Hz | 1.192 A @ 120 Hz | 1.192 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 100 kHz | 3.01 A @ 100 kHz | 1.68 A @ 100 kHz | 1.49 A @ 100 kHz | 1.49 A @ 100 kHz |
| Impedance | 33 mOhms | 14 mOhms | 33 mOhms | 35 mOhms | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.654" (42.00mm) | 1.063" (27.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
