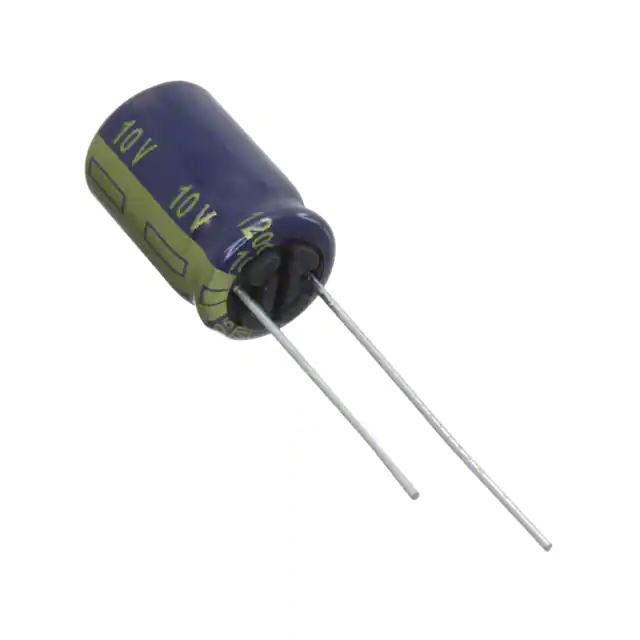

| Part Number | EEU-FK0J152 | EEU-FK0J152L | EEU-FK0J152B | EEU-FK0J102 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1500 µF | 1500 µF | 1500 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C | 3000 Hrs @ 105°C | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 992 mA @ 120 Hz | 976 mA @ 120 Hz | 992 mA @ 120 Hz | 675 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.24 A @ 100 kHz | 1.22 A @ 100 kHz | 1.24 A @ 100 kHz | 900 mA @ 100 kHz |
| Impedance | 49 mOhms | 44 mOhms | 49 mOhms | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.866" (22.00mm) | 0.689" (17.50mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
