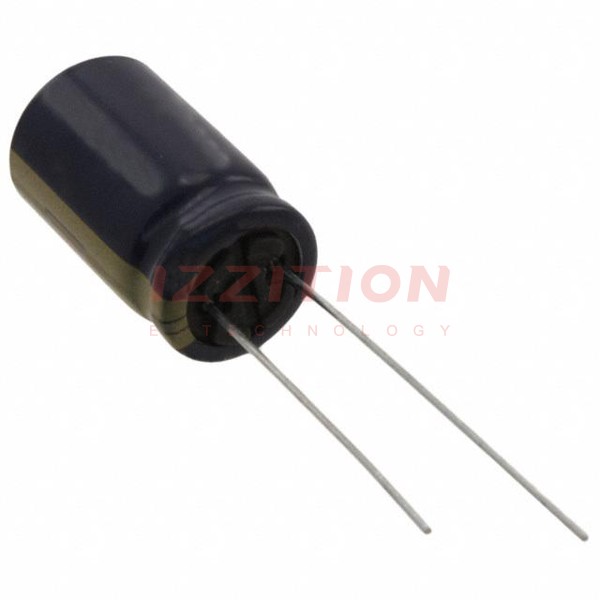

| Part Number | EEU-FC2A680Y | EEU-FC2A680 | EEU-FC2A680B | EEU-FC2A680L |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 68 µF | 68 µF | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 332.2 mA @ 120 Hz | 332.2 mA @ 120 Hz | 332.2 mA @ 120 Hz | 295.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 511 mA @ 100 kHz | 511 mA @ 100 kHz | 559 mA @ 100 kHz |
| Impedance | 230 mOhms | 230 mOhms | 230 mOhms | 210 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.984" (25.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
