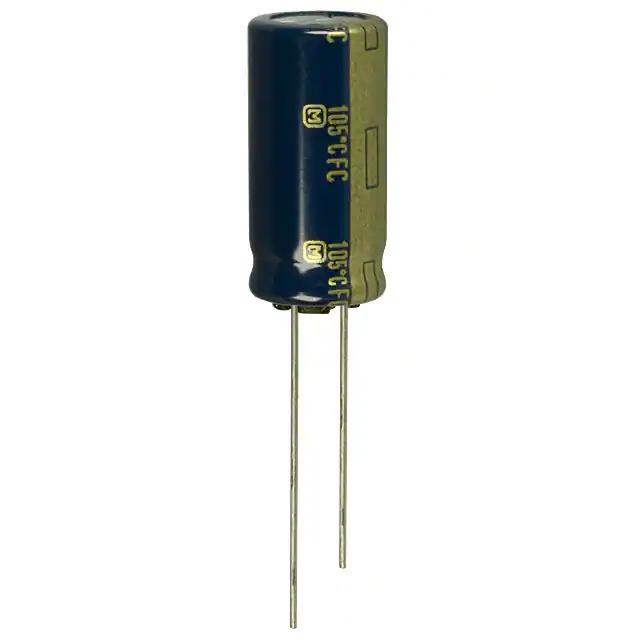

| Part Number | EEU-FC2A470 | EEU-FC2A471 | EEU-FC2A470B |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 47 µF | 470 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 301 mA @ 120 Hz | 1.44 A @ 120 Hz | 301 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 1.92 A @ 100 kHz | - |
| Impedance | 240 mOhms | 47 mOhms | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) | - |
| Height - Seated (Max) | 0.787" (20.00mm) | 1.575" (40.00mm) | - |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
