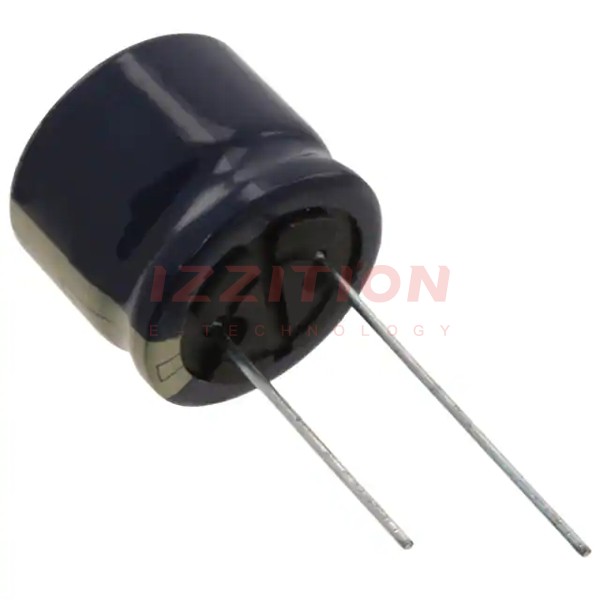

| Part Number | EEU-FC2A391 | EEU-FC2A391L | EEU-FC2A331 | EEU-FC2A390 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 390 µF | 390 µF | 330 µF | 39 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz | 1.298 A @ 120 Hz | 988 mA @ 120 Hz | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz | 1.73 A @ 100 kHz | 1.52 A @ 100 kHz | - |
| Impedance | 62 mOhms | 53 mOhms | 62 mOhms | 360 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) | 1.398" (35.50mm) | 1.240" (31.50mm) | 0.669" (17.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
