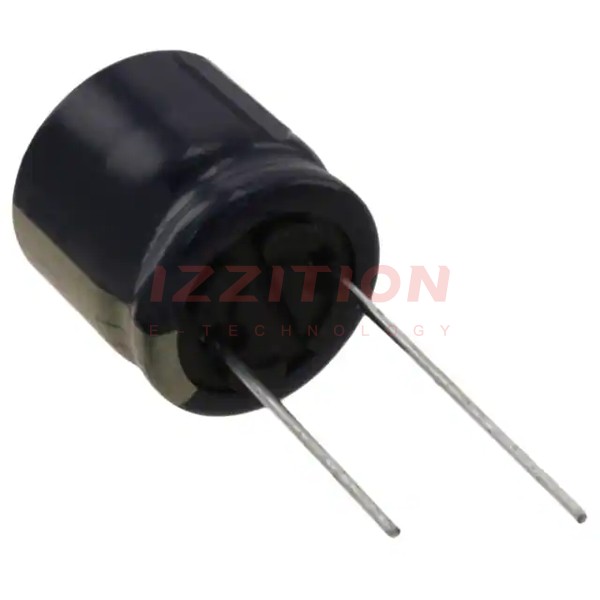

| Part Number | EEU-FC2A390LJ | EEU-FC2A330LJ | EEU-FC2A390L | EEU-FC2A390LB |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 39 µF | 33 µF | 39 µF | 39 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 295.8 mA @ 120 Hz | 221 mA @ 120 Hz | 295.8 mA @ 120 Hz | 295.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 455 mA @ 100 kHz | - | 455 mA @ 100 kHz | 455 mA @ 100 kHz |
| Impedance | 330 mOhms | 450 mOhms | 330 mOhms | 330 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) | 0.650" (16.50mm) | 0.866" (22.00mm) | 1.024" (26.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
